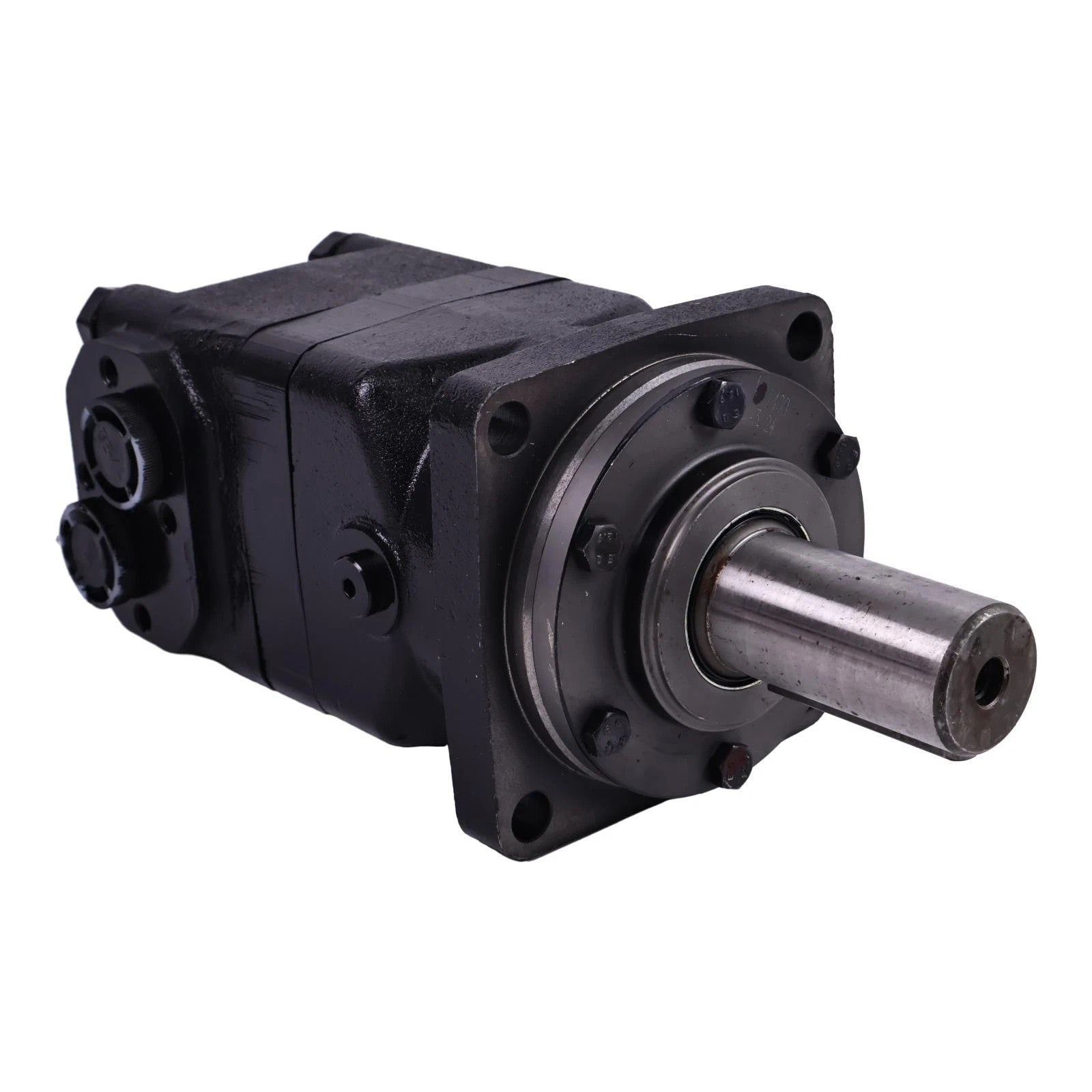

Hydraulic Motor 151b-3004 151b3004 Omt400-151b3004 Omt Series 40mm

Hydraulic Motor 151B-3004 151B3004 OMT400-151B3004 OMT Series 40mm 3/4 BSP Part Number: 151B3004, 151B-3004, OMT400-151B3004, OMT400151B3004 Description: Cylindrical output shaft 40mm with 3/4 BSP port OMT 400 Low Speed High Torque motor, Geometric Displacement 410.9 cm3 Motor size:400 Geometric displacement( cm^3[in]):410,9[25.07] Max speed cont:305 rpm Max speed int:365 rpm Max torque cont(Nm[lbf in]):1080[9560] Max torque int(Nm[lbf in]):1260[11150] Max output power cont(kW[hp]):30,0[40.2] Max output power int(kW[hp]):35,0[46.9] Max pressure drop cont(bar[psi]):180[2610] Max pressure drop int(bar[psi]):210[3050] Max pressure drop peak(bar[psi]):240[3480] Max oil flow cont(l/min[gpm]):125[33.0] Max oil flow int(l/min[gpm]):150[39.6] Max starting pressure with unloaded shaft(bar[psi]):10[

Important Information

Please check all dimensions, specifications and suitability for your application before ordering. Images are for illustration purposes only.
