Avr Sx440 Module Automatic Voltage Regulator For | Hook & Hull Co

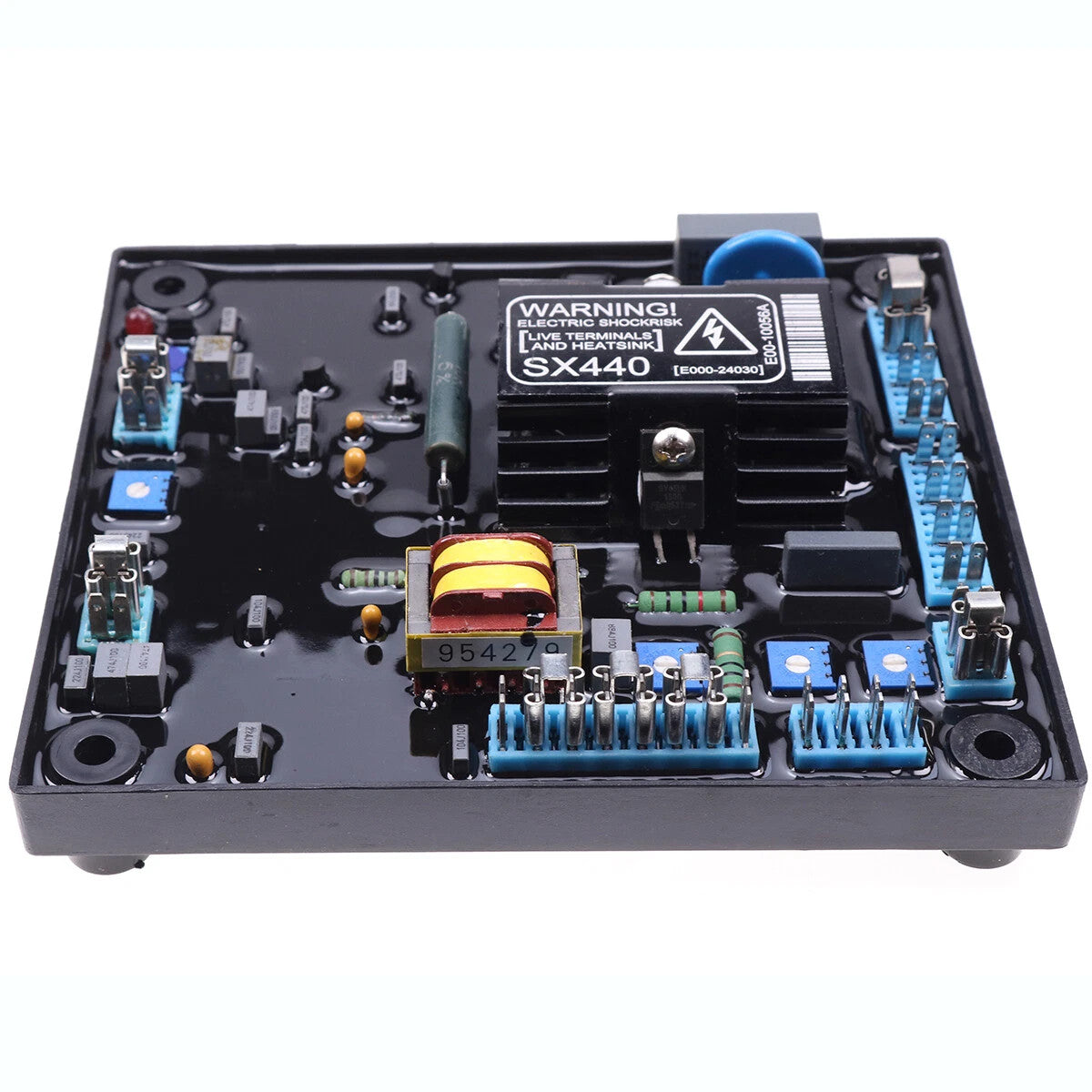

AVR SX440 Module Automatic Voltage Regulator for Stamford Brush-less Generator Part Number: SX440, E000-24030 Specification: SX440 is a half-wave phase-controlled thyristor type Automatic Voltage Regulator (AVR) and forms part of the excitation system for a brush-less generator. Sensing Input: Voltage: 190-264V ac max, 1 phase 2 wire Frequency: 50-60HZ nominal Power inpot Voltage: 140-220 V ac max, 3 phase,3 wire Current: 3A/phase Frequency: 100-120HZ nominal Out put Voltage: max 120V/DC Current: continuous 2.7A/DC Intermittent 6A for 10 secs Resistance: 15 ohms minimum Regulation: +/-1% Thermal drift: 0.03% per deg.C change in AVR ambient Soft start pamp time: 3 sec Typical system response AVR respone: 10ms Filed current to 90%: 80ms Machine Volts to 97%: 300ms External voltage adjustment

Available from Hook & Hull Co — New Zealand.
