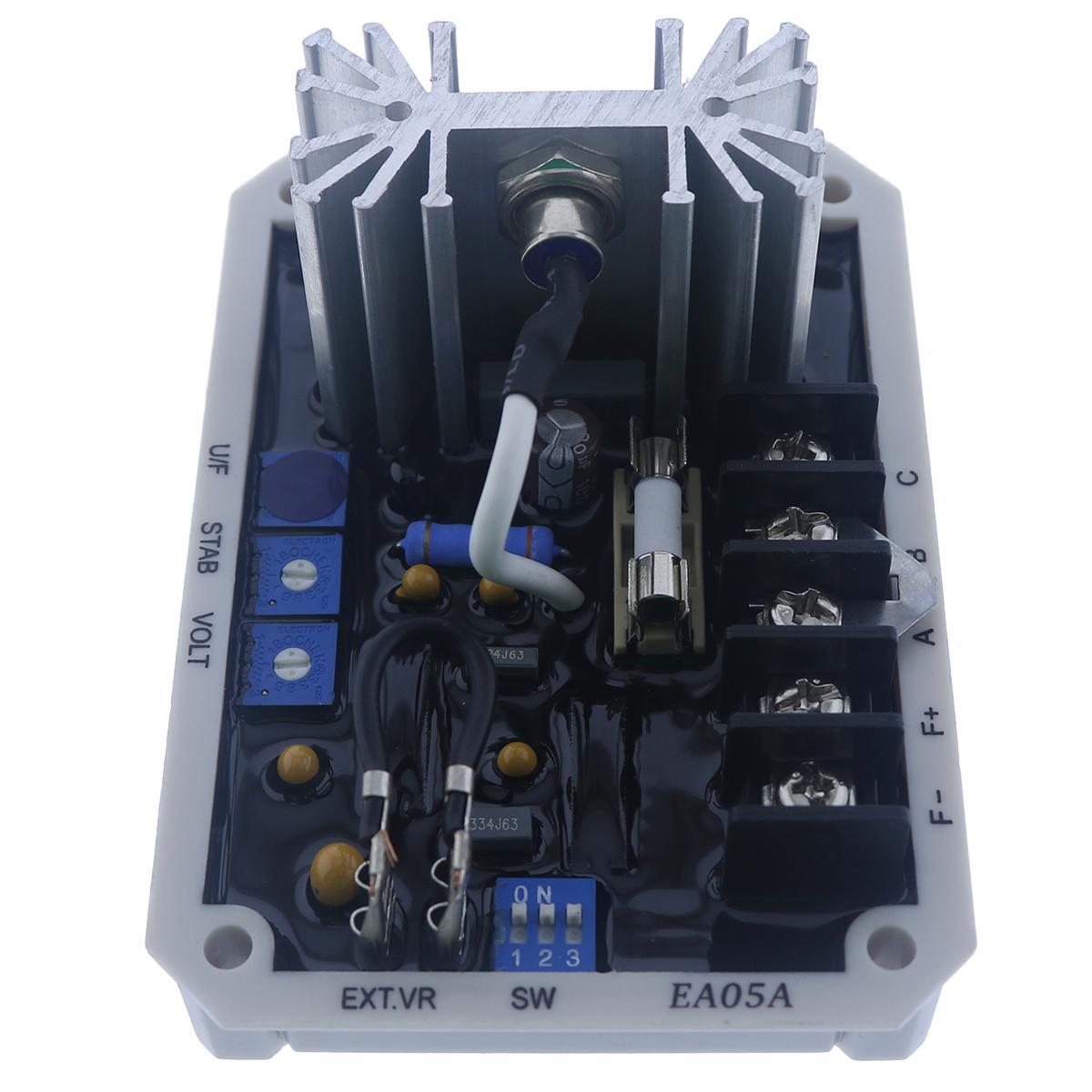

Automatic Voltage Regulator Controller For Kutai | Hook & Hull Co

Part Number: VR648, EA05A See Details: Sensing Input Voltage: 220/380/440 VAC, 1 phase 2 wire DIP switch selectable Frequency: 50/60 Hz, DIP swtich selectable Output Voltage: Max 63V dc at 220V ac input Max 90V dc at 240V ac input Current: Continuous 5 A Intermittent 7 A for 10 secs Resistance: MIN. 15 ohm MAX. 100 ohm Voltage Regulation: <±0.5% ( with 4% engine governong ) Voltage Build-up: Residual Voltage at AVR terminal > 5VAC Thermal Drift: 0.03% per deg. C change in AVR ambient EXTERNAL VOLTAGE ADJUSTMENT: 7% with 1 k ohm 1 watt trimmer EMI Suppression: Internal electromagnetic interference filtering Unit Power Dissipation: MAX. 8 Watt UNDER FREQUENCY PROTECTION(factory setting): 60 Hz system presets knee point at 55Hz 50 Hz system presets knee point at 45Hz Soft Start Ramp Time: 3 s

Available from Hook & Hull Co — New Zealand.
